PATTINI ROOF SLATE
SLATE ROOFING TILES

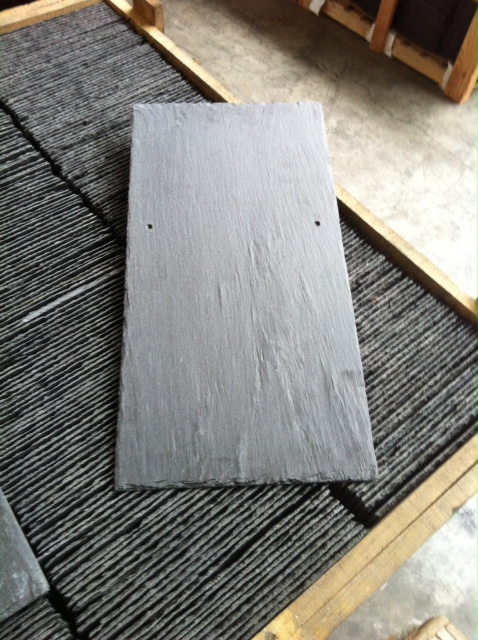

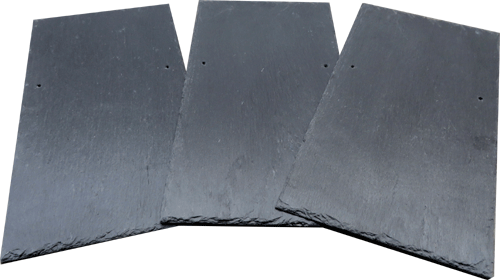

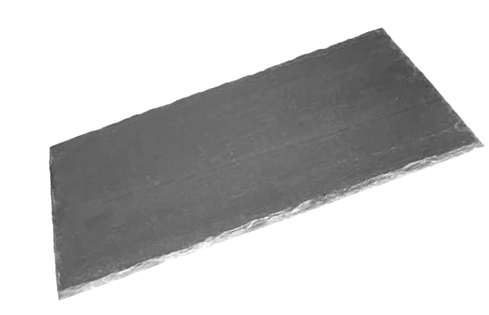

Pattini is a fine grained black slate with an attractive longitudinal grain that runs evenly down the length of the slate. The surface is clean and even with a fine grain but the slate has character by virtue of its thickness and chamfered edge. The test results for this very affordable slate indicate a predicted lifespan of 75+ years. The slates have no mineral intrusions or reports of rust from roofs in Ireland, UK or Europe where the slates have been used for 16 years without problems
SPECIFICATIONS
Size - 600x300x6-7.5mm
Weight - 2.8kg approximately
Holes - 240mm from the head of the slate; 35mm from the sides
Slates / covered metre = 12.6 pieces (assuming 80mm headlap & no wastage)
Cost / slate - $3.35 + GST
Cost / covered metre - $42.21 + GST
NB This slate is also available in 500x300 & 500x250 but at a significantly higher price per covered metre. The 600x300mm format was selected for speed and ease of fixing and lower project costs.

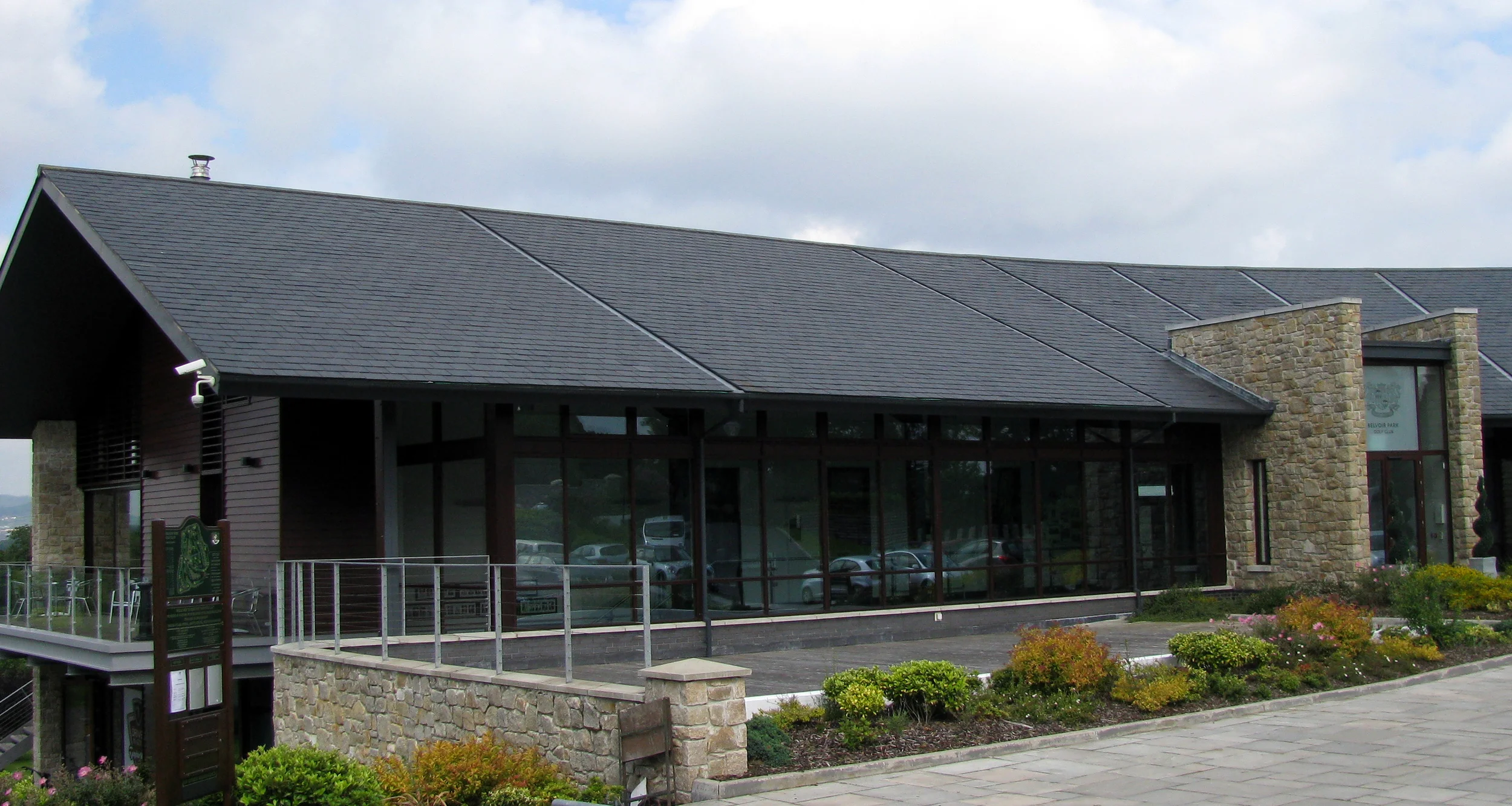

PATTINI SLATE PROJECT IMAGES
PATTINI TEST RESULTS
(EN 12326) - June, 2013
Water Absorption – 0.2%; Classification A1
Thermal Cycle – Classification T1
Sulphur Dioxide Exposure – Classification S1
Mean MoR (longitudinal) - 59MPa
Mean MoR (transverse) - 39MPa
Deviation from flatness - 0.06%
Reaction to Fire - Classification A1
Non-carbonate Carbon Content - 0.03%
NB The data above has been provided by the supplier. The analysis was conducted by the Independent Building Investigation Services, China
